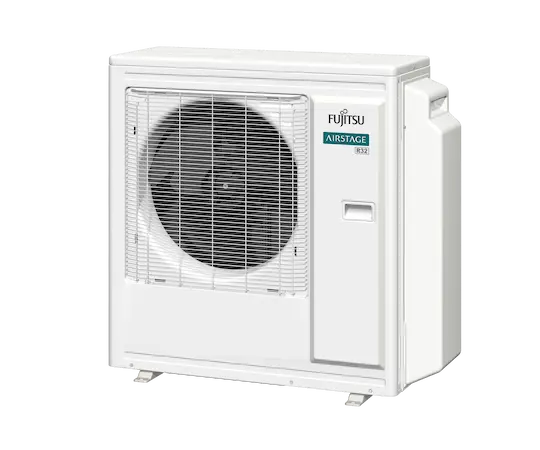

AIRSTAGE MULTI-ROOM MINI-SPLIT SYSTEM Extra Low Temperature Heating Multi-Zone Outdoor Unit
AIRSTAGE Aquila XLTH
KWAH Series
Select either an 18, 24, 36,000 BTU/h outdoor unit combined with wall mounted, slim duct, compact cassette or mid static duct indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be recessed or exposed.
Size (kBTU/h): 18, 24, 36
Features
Energy Efficient
Fujitsu AIRSTAGE H-Series Systems represent some of the most advanced heating and air conditioning solutions available today. One outdoor unit can operate up to 5 indoor units simultaneously. Fujitsu’s systems feature superior performance and exceptional energy efficiency.
Year-Round Comfort
AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.
No Temperature Lockout!
Heating down to -15°F (-26°C) without sacrificing heating capacity at low outdoor temperatures
Built-in Base Pan Heater
Keeps condensate from freezing for superior cold-weather performance.
Individual Room Zoning
Extra Low Temp Heating (XLTH) Outdoor unit can connect between 2-4 indoor units simultaneously, operate as few as one indoor unit or all indoor units on your system.
Specifications
- Sound Level: As low as 47dB
- SEER2: As low as 19.0 BTU/hW
- HSPF2: As low as 10.0 BTU/hW
- Energy Star: Yes
- Cooling Operating Range: 14°F to 122°F (-10°C to 50°C)
- Heating Operation Range: -15°F to 75°F (-26°C to 24°C)
Warranty
7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.
Dimensions
18,000 BTU/h
24,000 BTU/h
36,000 BTU/h
KWAH Technical Information
Select an individual KWAH unit below to view its compatibility with other products, and links to submittals and other data.
