AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Ceiling Suspended Systems
Ceiling Suspended Systems
KUAS1B & KUAH1B
Experience a new level of comfort and efficiency with the feature-rich AIRSTAGE Centauri & Centauri XLTH Series ceiling suspended systems, now paired with Extra Low Temperature Heating Outdoor Units for reliable performance in cold-climate applications. The innovative ceiling suspended design, combined with advanced fan technology, delivers superior capacity and whisper-quiet operation year-round. Compact outdoor unit footprints, extended line set lengths, and robust low-ambient heating capability provide outstanding installation flexibility—making it easier than ever to deliver dependable comfort, even when outdoor temperatures drop.
Size (kBTU/h): 18, 24, 30, 36
Features
Ducted Technology
AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.
Year-Round Comfort
AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.
Energy Efficient
Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.
No Temperature Lockout! ( XLTH Only)
Heating down to -15°F (-26°C) without sacrificing heating capacity at low outdoor temperatures
Specifications
- Sound Level: As low as 29dB
- SEER2: As low as 20.8 BTU/hW
- HSPF2: As low as 8.1 BTU/hW
- Energy Star: Yes (On select models)
- Cooling Operating Range: -5°F to 122°F (-21°C to 50°C)
- Heating Operation Range: -15°F to 75°F (-26°C to 24°C) XLTH -5°F to 75°F (-21°C to 24°C) Standard
Warranty
7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.
Dimensions
18,000 BTU/h
24,000 BTU/h
30,000 BTU/h
36,000 BTU/h
KUAS1B & KUAH1B Technical Information
Select an individual KUAS1B & KUAH1B unit below to view its compatibility with other products, and links to submittals and other data.
Optional Accessories
KAGAMI Touch Panel Wired Controller (UTY-RVRU)

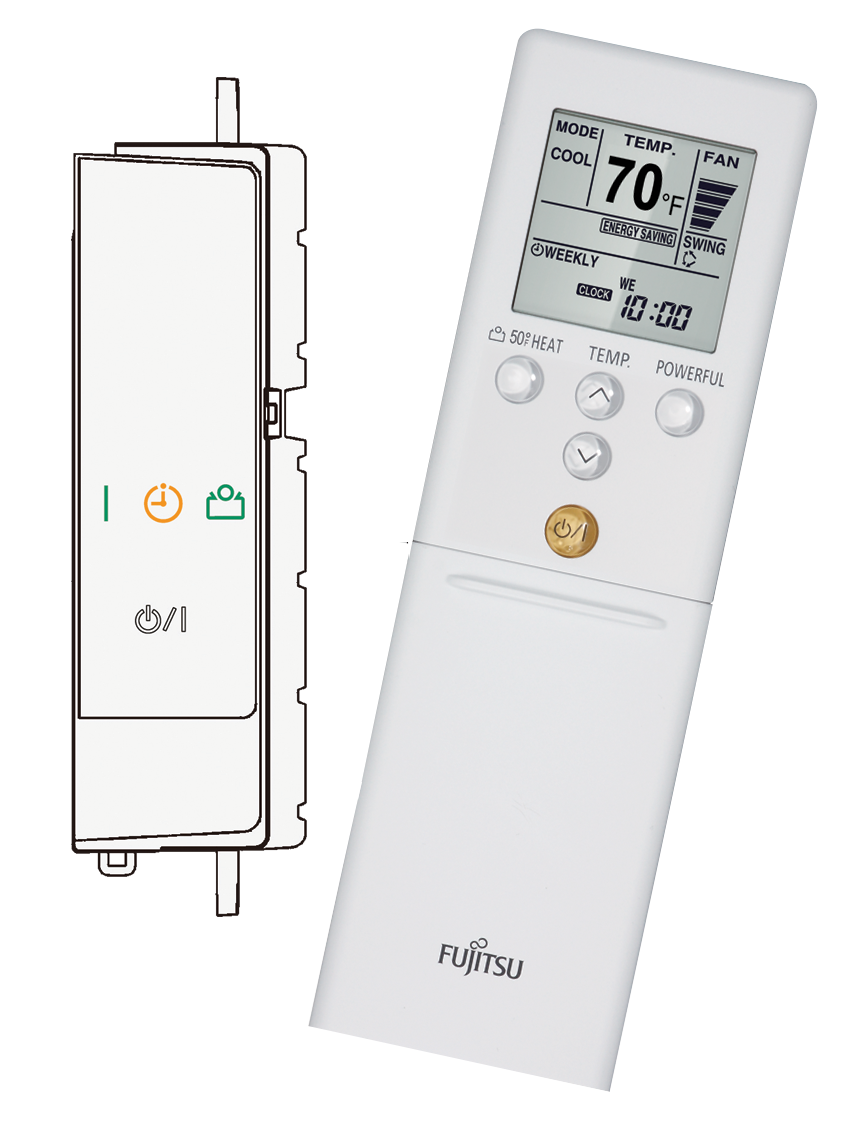

IR Receiver Kit w/ Wireless Remote Controller (UTY-LBTUH)

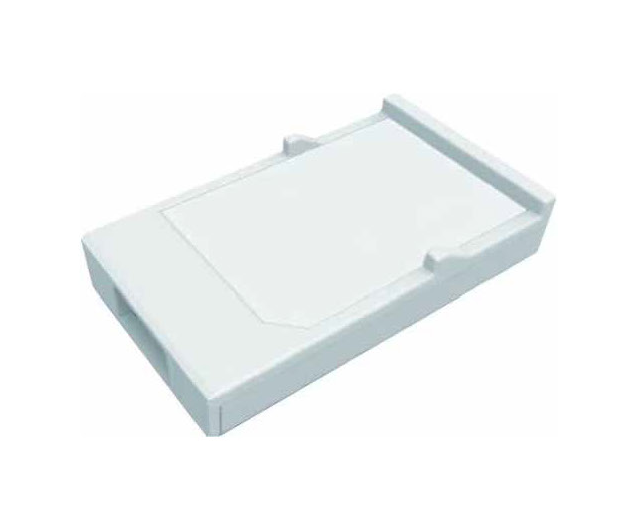

Wi-Fi Adapter (WiFi Interface Module USB Type)
Intesis IR Wireless AC Cloud Control Interface (Intesis Home app)
- *
