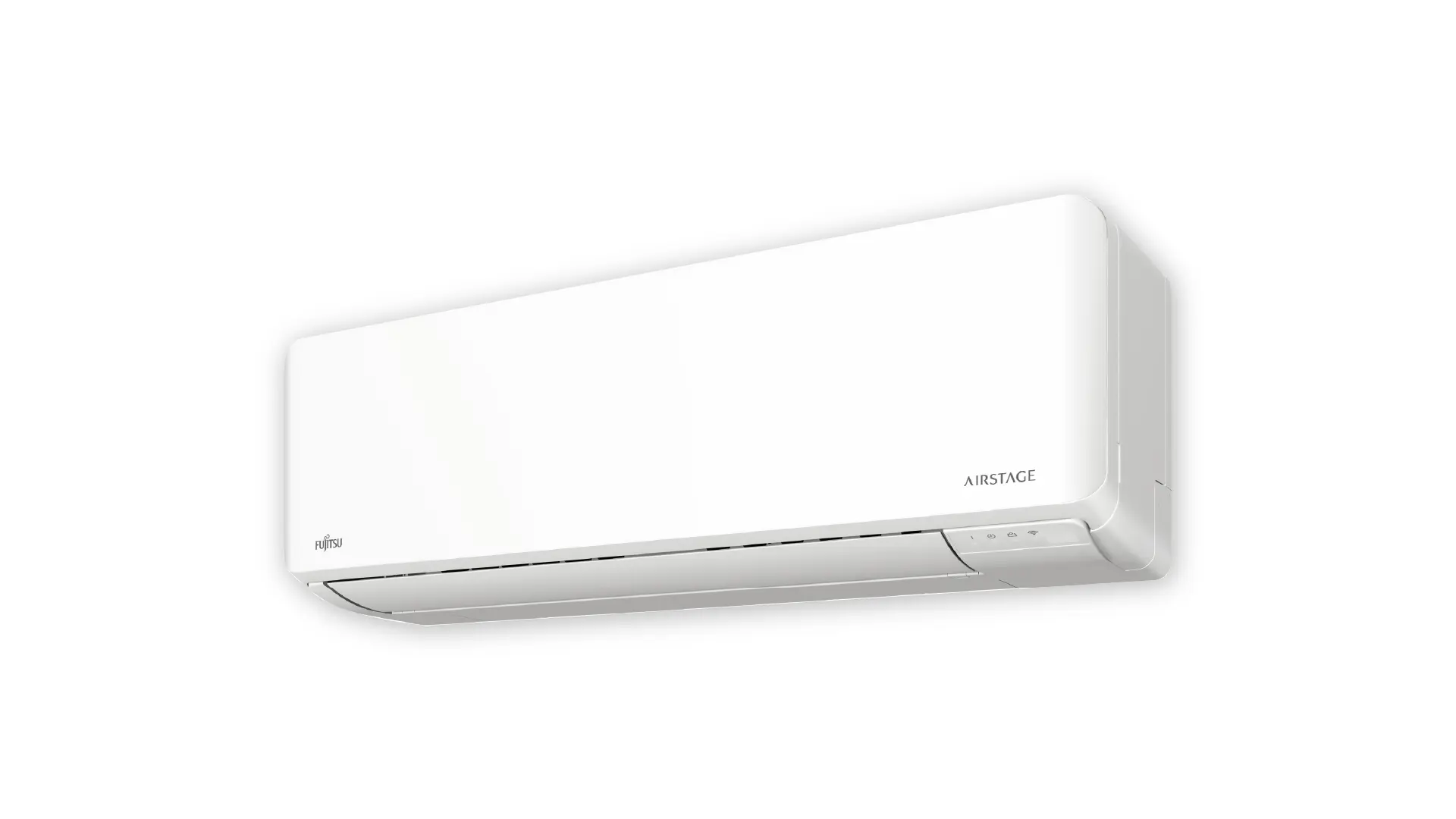

AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Better-Tier Wall-Mounted Indoor Unit

KMAS1

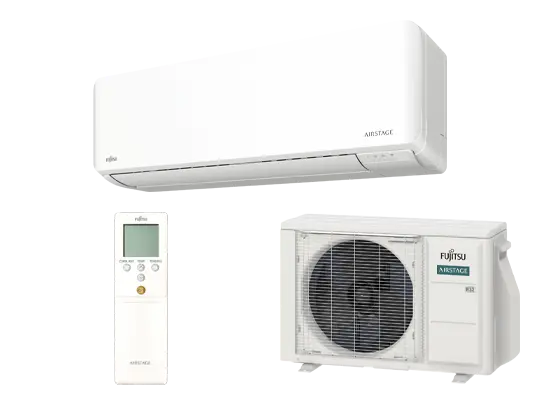

Maximize comfort and efficiency with the Altair 700 Series inverter heat pumps. Packed with top-quality features, this energy-efficient system includes a stylish wall-mounted design, cutting-edge fan technology, and whisper-quiet operation. The compact outdoor unit and extended line set lengths make installation effortless, delivering unparalleled comfort and flexibility to any space.

Size (kBTU/h): 9, 12

Features

Ductless Technology

AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.

Year-Round Comfort

AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.

Energy Efficient

Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.

No Temperature Lockout!

Heating down to 5°F (-15°C) without sacrificing heating capacity at low outdoor temperatures

Specifications

  • Sound Level: As low as 19dB
  • SEER2: As high as 30.0 BTU/hW
  • HSPF2: As high as 12.6 BTU/hW
  • Energy Star: Yes
  • Cooling Operating Range: 14°F to 122°F (10°C to 50°C)
  • Heating Operation Range: 5°F to 75°F (-15°C to 24°C)

Warranty

7 Year Compressor, 5 Year Parts out-of-the-box Warranty.

10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.

12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.

Read more about our warranty statements

Dimensions

9,000 BTU/h

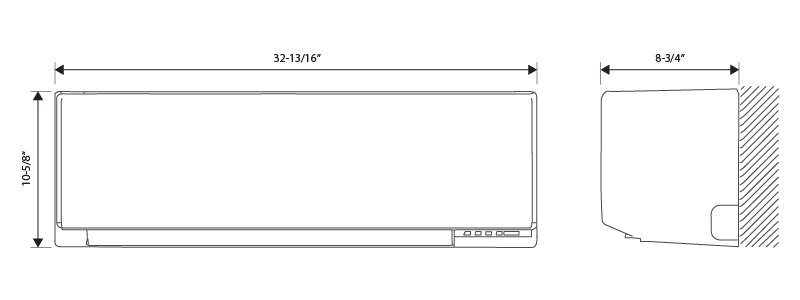

Dimension drawing, 9,000 BTU/h

12,000 BTU/h

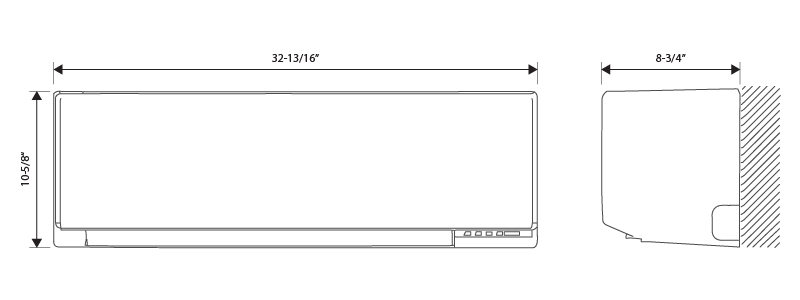

Dimension drawing, 12,000 BTU/h

KMAS1 Technical Information

Select an individual KMAS1 unit below to view its compatibility with other products, and links to submittals and other data.

ASUH09KMAS 9,000 BTU/h 0.75-9,000 BTU/h 0.75-Ton Wall-Mounted Indoor Unit

Compatible Outdoor Units

AOUH09KMAS1 9,000 BTU/h 0.75-9,000 BTU/h 0.75-Ton Compact Outdoor Unit

ASUH09KMBS 9,000 BTU/h 0.75-9,000 BTU/h 0.75-Ton Wall-Mounted Indoor Unit

Compatible Outdoor Units

AOUH09KMAS1 9,000 BTU/h 0.75-9,000 BTU/h 0.75-Ton Compact Outdoor Unit

ASUH12KMAS 12,000 BTU/h 1-9,000 BTU/h 0.75-Ton Wall-Mounted Indoor Unit

Compatible Outdoor Units

AOUH12KMAS1 12,000 BTU/h 1-9,000 BTU/h 0.75-Ton Compact Outdoor Unit

ASUH12KMBS 12,000 BTU/h 1-9,000 BTU/h 0.75-Ton Wall-Mounted Indoor Unit

Compatible Outdoor Units

AOUH12KMAS1 12,000 BTU/h 1-9,000 BTU/h 0.75-Ton Compact Outdoor Unit

Optional Accessories

KAGAMI Touch Panel Wired Controller (UTY-RVRU)*

Touch Panel Wired Remote Controller (UTY-RNRUZ5)

Intesis IR Wireless AC Cloud Control Interface (Intesis Home app)

*
Requires Communication kit UTY-TWRXZ2 to connect this device to Indoor Unit.
*
"AIRSTAGE" is a trademark of GENERAL Inc.
*
"STHP" is a trademark of GENERAL Inc.
