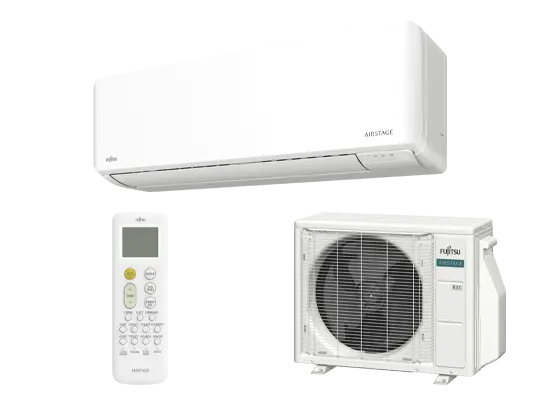

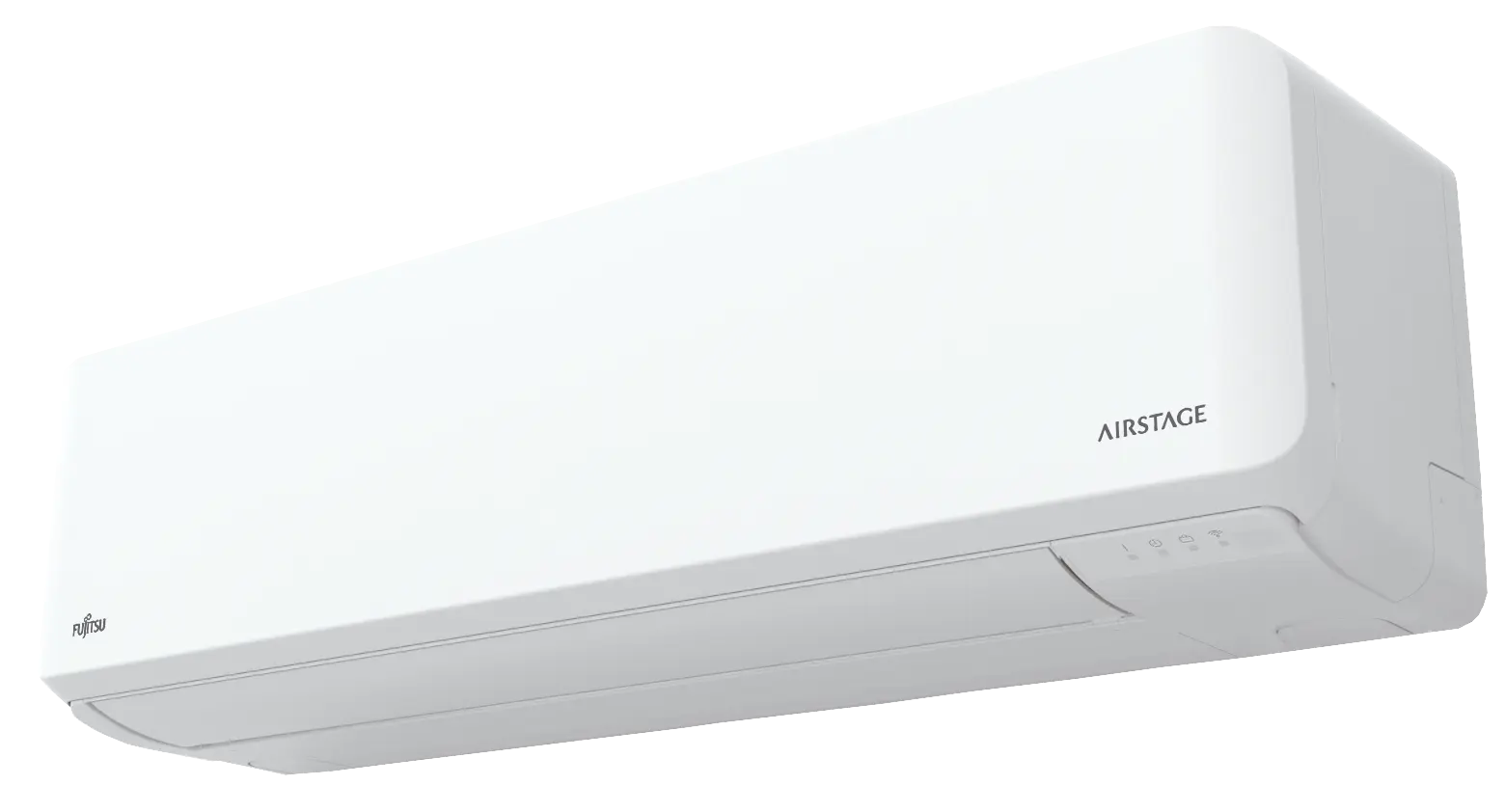

AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Good-Tier Wall-Mounted Indoor Unit
AIRSTAGE Altair 500
KPAS1
Elevate your comfort with the Altair 500 Series inverter heat pump. Offering enhanced features and performance, this system boasts a sleek wall-mounted design and advanced fan technology for superior efficiency and quiet operation. With its compact outdoor unit and extended line set lengths, the Altair 500 Series provides greater flexibility for seamless installation in a variety of spaces.
Size (kBTU/h): 9, 12, 18, 24, 30, 36
Features
Ductless Technology
AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.
Year-Round Comfort
AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.
Energy Efficient
Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.
No Temperature Lockout!
Heating down to 5°F (-15°C) without sacrificing heating capacity at low outdoor temperatures
Specifications
- Sound Level: As low as 19dB
- SEER2: As high as 26.0 BTU/hW
- HSPF2: As high as 10.8 BTU/hW
- Energy Star: On select models
- Cooling Operating Range: 14°F to 122°F (10°C to 50°C)
- Heating Operation Range: 5°F to 75°F (-15°C to 24°C)
Warranty
7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.
Dimensions
9,000 BTU/h
12,000 BTU/h

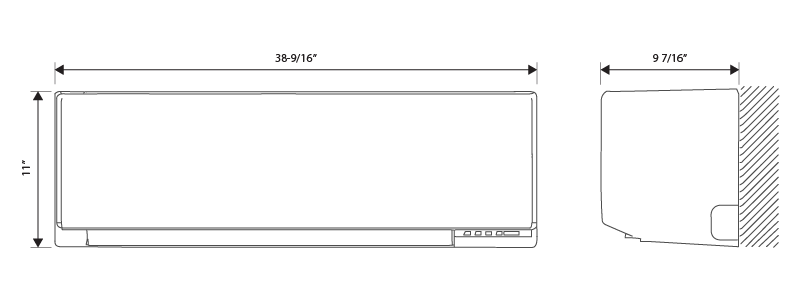

18,000 BTU/h

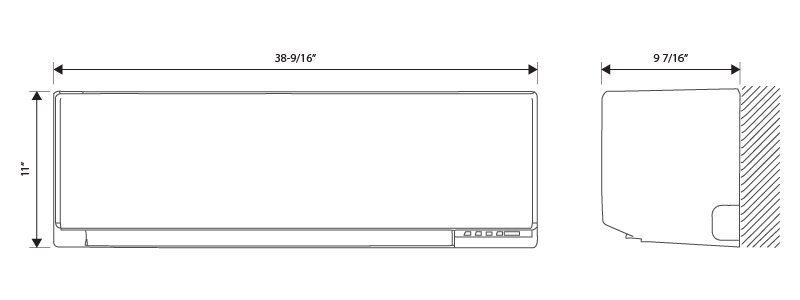

24,000 BTU/h

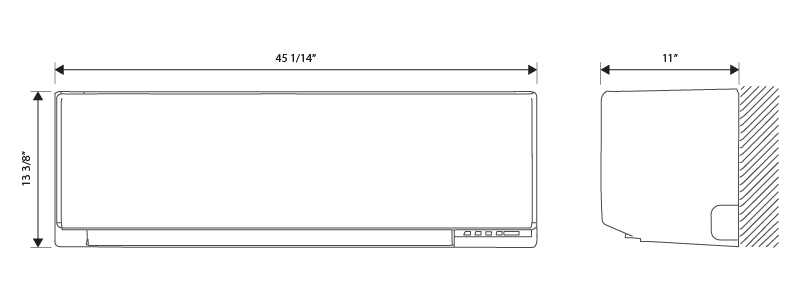

30,000 BTU/h

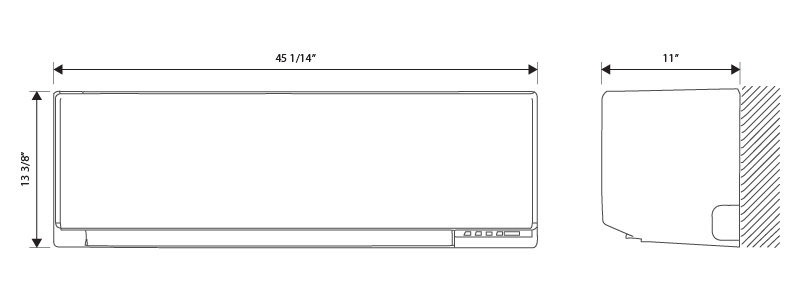

36,000 BTU/h
KPAS1 Technical Information
Select an individual KPAS1 unit below to view its compatibility with other products, and links to submittals and other data.
Optional Accessories
KAGAMI Touch Panel Wired Controller (UTY-RVRU)*
Touch Panel Wired Remote Controller (UTY-RNRUZ5)
Wi-Fi Adapter (WiFi Interface Module USB Type)
Intesis IR Wireless AC Cloud Control Interface (Intesis Home app)
- *
- Requires Communication kit UTY-TWRXZ2 to connect this device to Indoor Unit.
- *
- "AIRSTAGE" is a trademark of GENERAL Inc.
- *
- "STHP" is a trademark of GENERAL Inc.
