AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Top-Tier Wall-Mounted Indoor Unit

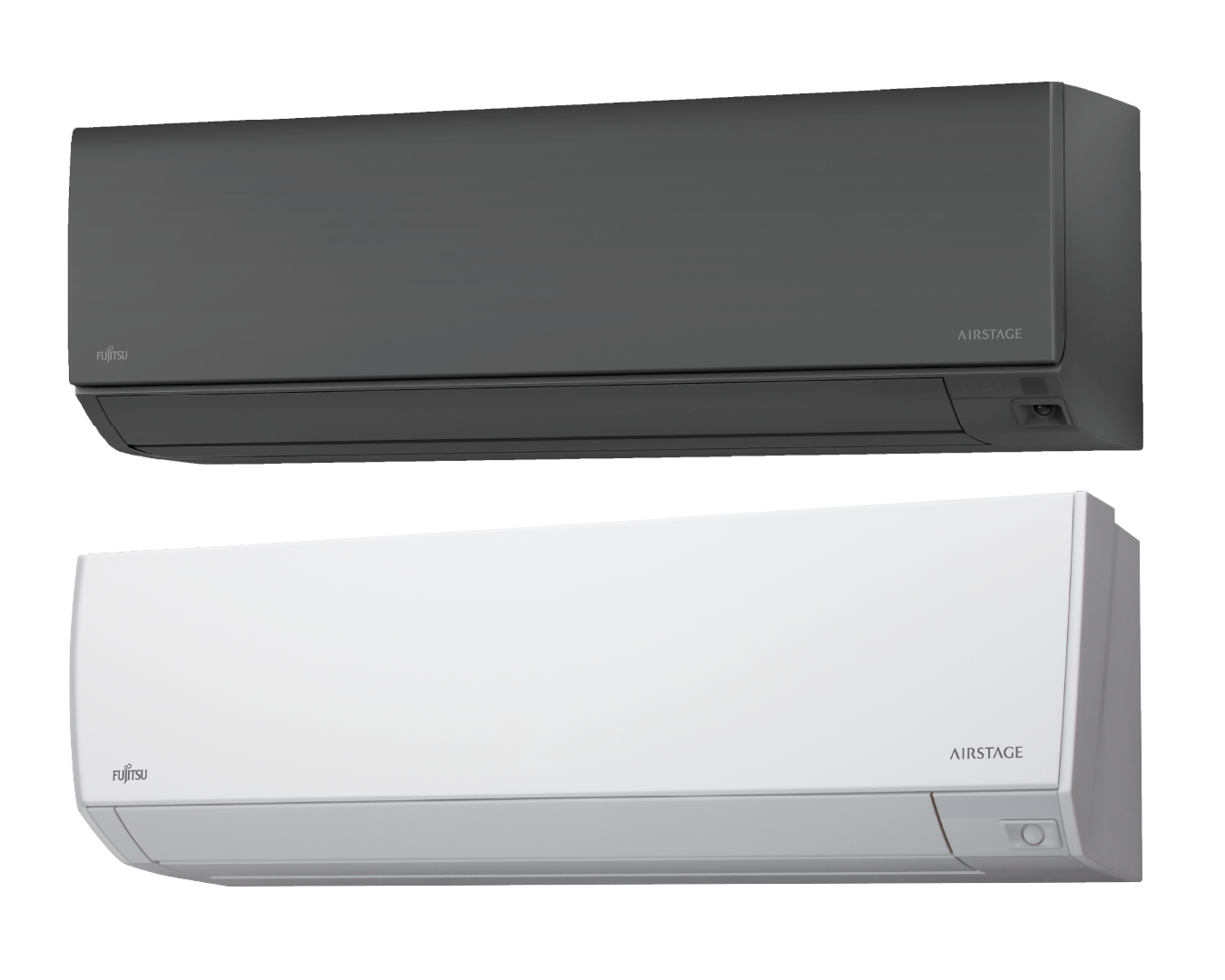

AIRSTAGE Orion XLTH+
KTAP1S/B

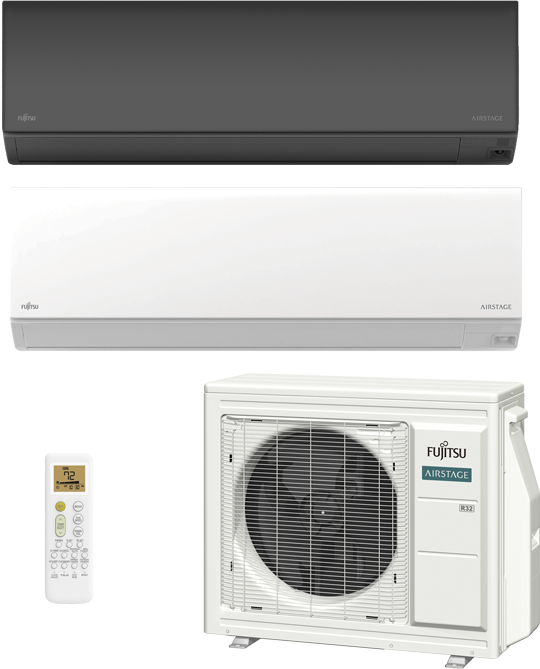

The Orion XLTH+ Series is an advanced system combining sleek wall-mounted aesthetics with innovative fan technology and ultra-quiet operation. Its compact outdoor unit and extended line set lengths simplify installation, integrating into any space. Built to perform in extreme cold, the Orion XLTH+ delivers unmatched flexibility and reliable, energy-efficient heating and cooling for year-round comfort. comfort to any space.
Size (kBTU/h): 9, 12, 15
Features
Ductless Technology
AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.
Year-Round Comfort
AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.
Energy Efficient
Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.
No Temperature Lockout!
Heating down to -22°F (-30°C) without sacrificing heating capacity at low outdoor temperatures
Specifications
- Sound Level: As low as 23dB
- SEER2: Up to 33.5 BTU/hW
- HSPF2: Up to 14.0 BTU/hW
- Energy Star: Yes
- Cooling Operating Range: 14°F to 122°F (-10°C to 50°C)
- Heating Operation Range: -22°F to 75°F (-30°C to 24°C)
Warranty
7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.
Dimensions
9,000 BTU/h
12,000 BTU/h
15,000 BTU/h
KTAP1S/B Technical Information
Select an individual KTAP1S/B unit below to view its compatibility with other products, and links to submittals and other data.
Optional Accessories
KAGAMI Touch Panel Wired Controller (UTY-RVRU)*
Touch Panel Wired Remote Controller (UTY-RNRUZ5)
Intesis IR Wireless AC Cloud Control Interface (Intesis Home app)
- *
- Requires Communication kit UTY-TWRXZ2 to connect this device to Indoor Unit.
- *
- "AIRSTAGE" is a trademark of GENERAL Inc.
- *
- "STHP" is a trademark of GENERAL Inc.
