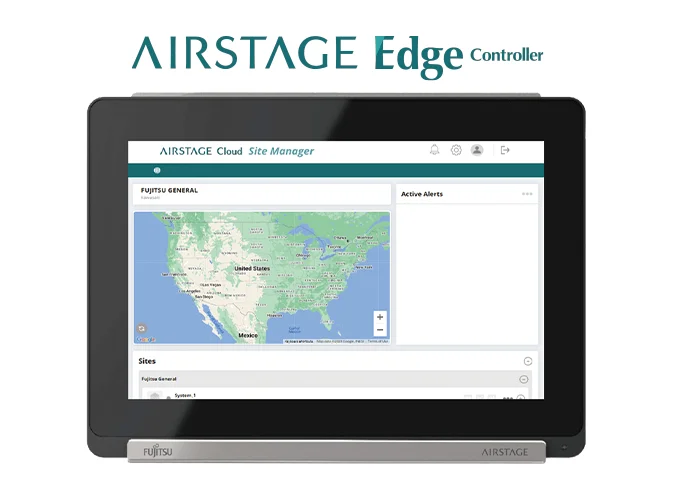

AIRSTAGE Edge Controller
UTY-DSGYZ2
- Max. number of controllable units:
- 128 indoor units
- Max. number of controllable zones:
- 128 zones
Features
- Stylish look
- 10.1 inch TFT color wide screen
- Visually intuitive operation
Specification
| Model Name | UTY-DSGYZ2 | |
|---|---|---|
| Power Supply | Phase | 1φ |
| Voltage | 100 ~ 240VAC V | |
| Frequency | 50/60 Hz | |
| Net Dimensions | Height | 195 mm |
| Width | 261 mm | |
| Depth | 63 mm | |
| Net Weight | 1,900 g | |
| Communication | LAN | 10BASE-T / 100BASE-TX RJ45 x 2ch |
| Wireless LAN | IEEE802.11 b/g/n 2.4GHz | |
| Others | LONWORKS x 1ch | |
| External Input | 2ch (Dry contact or Apply voltage) | |
| Monitor | 10.1 inch TFT LED-backlit LCD 1280 x 800 pixels 24bit color | |
| Touch panel | Capacitive touch panel | |
| LED | x 1 (Power indication) | |
| Switch | x 1 (Shut down/Menu ) | |
| Buzzer | Piezo buzzer (3 levels of volume) | |
