FGLair™ app SET UP - STEP4: Pairing External - Manual connection

1

Tap [＋] to add a new air conditioner.

Tap [＋] to add a new air conditioner

2

Select the adapter type of your air conditioner.

Select the adapter type of your air conditioner

3

Read the note and tap [Next].

Read the note and tap [Next]

4

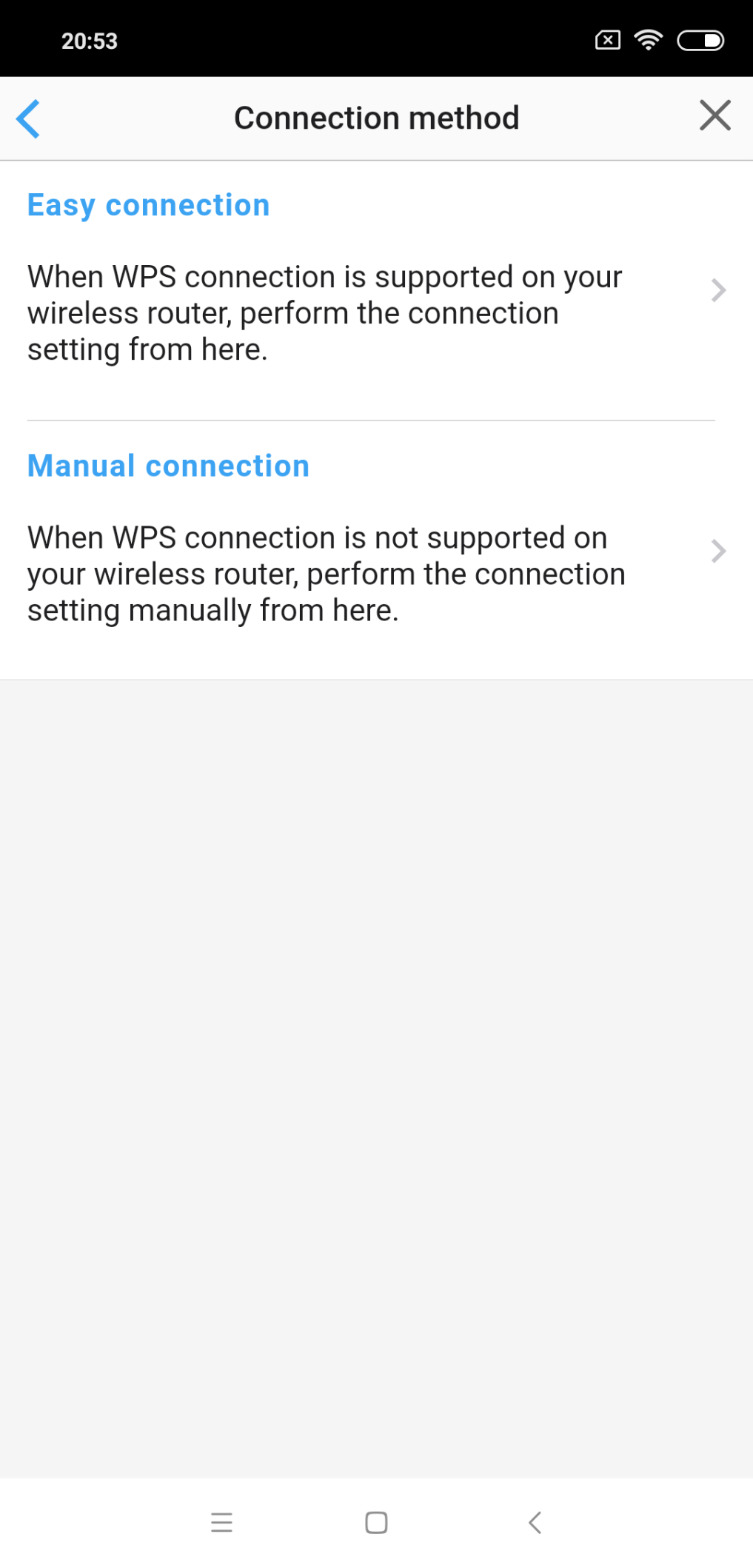

Select a [Manual connection].

Select a [Manual connection]

5

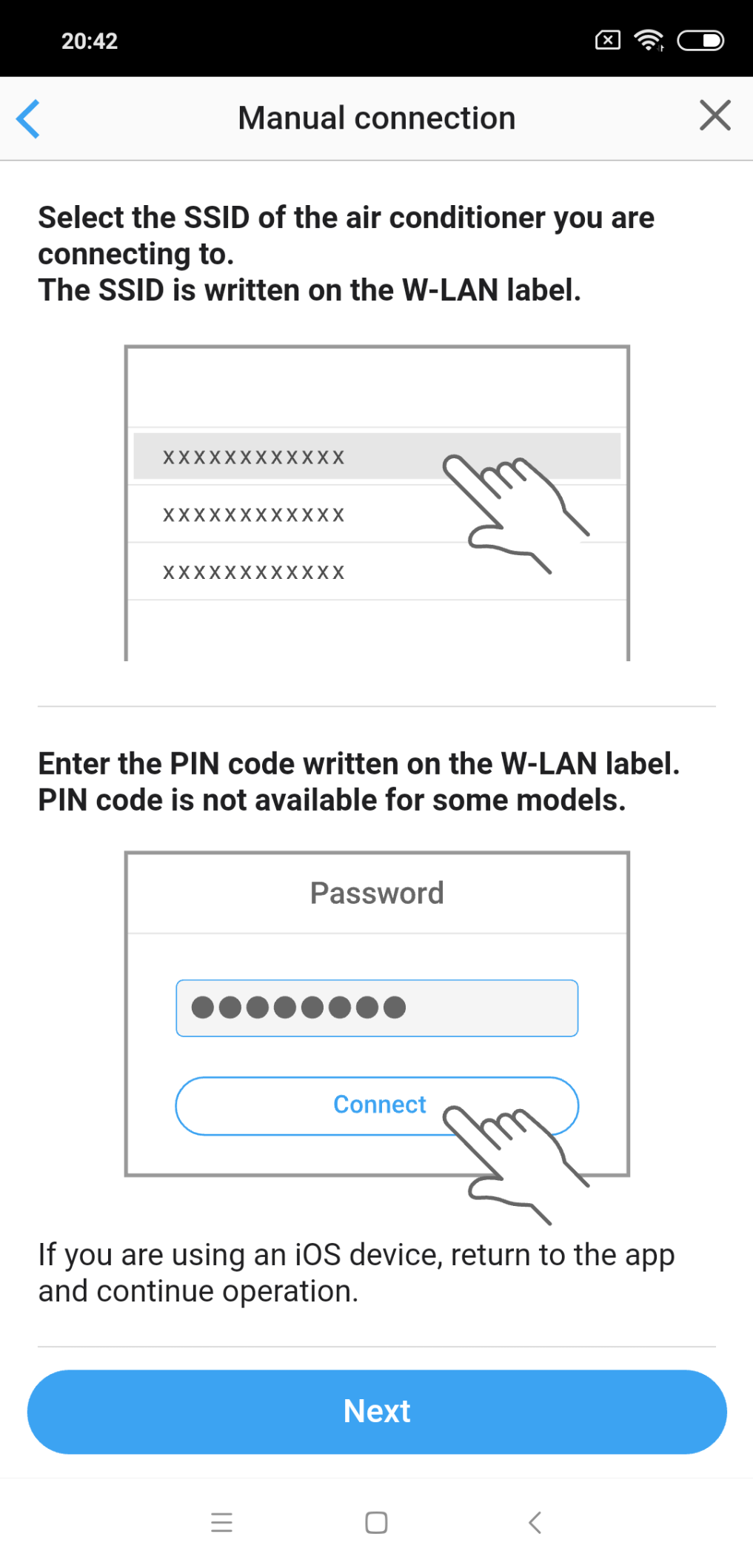

Read the note and tap [Next].

Read the note and tap [Next]

6

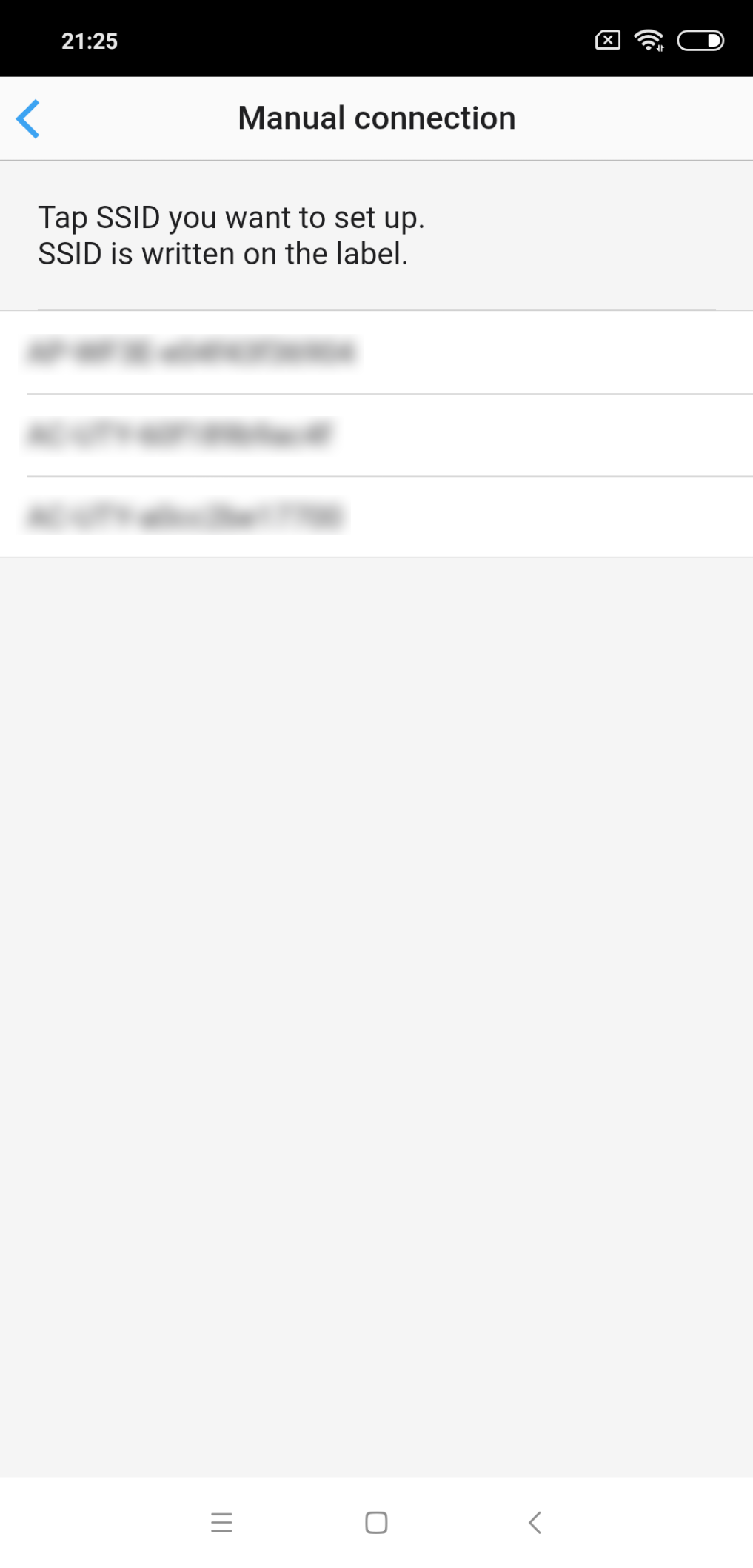

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen.

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen
iOS flow

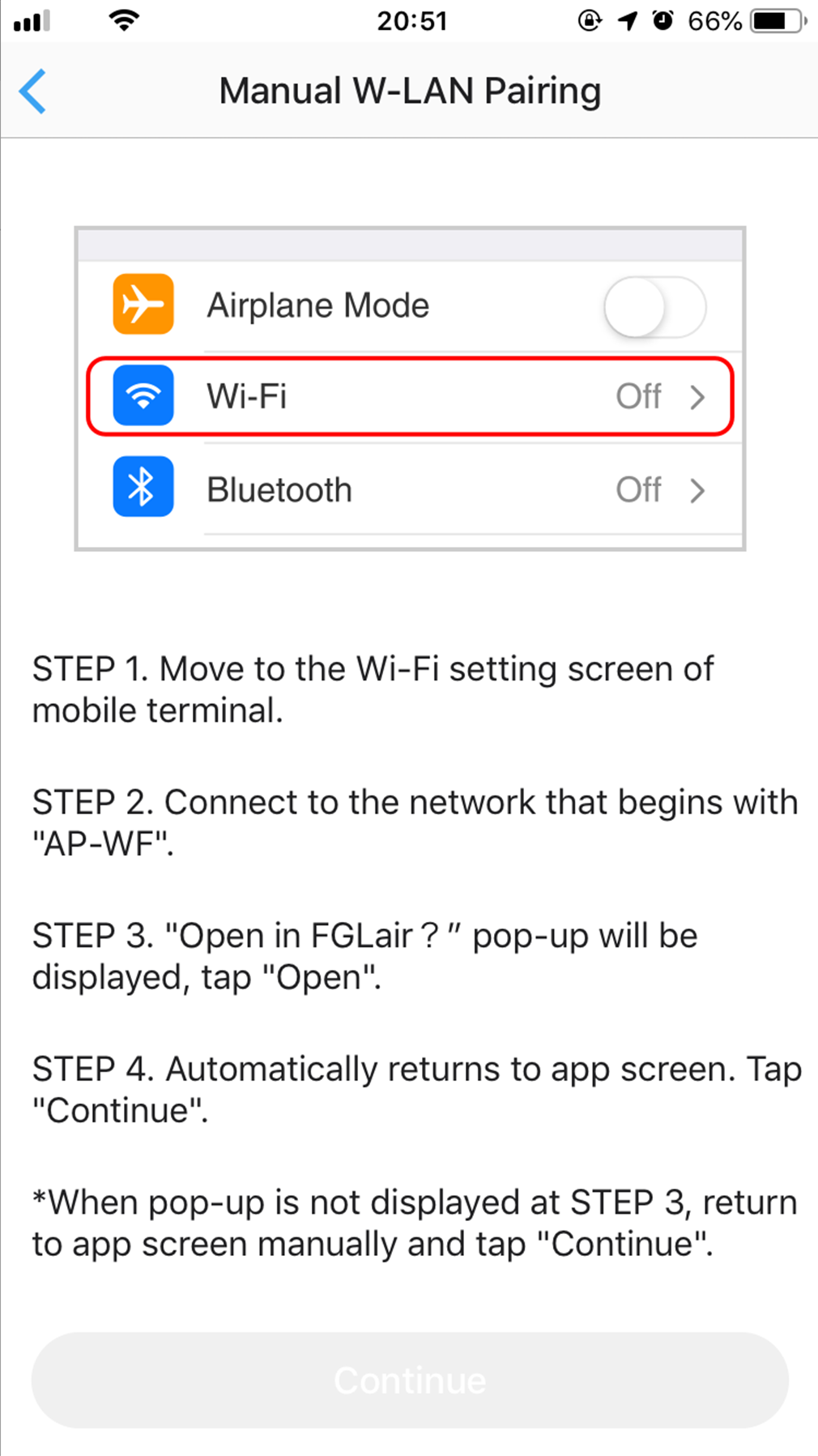

Open [Setting] -> W-LAN by following the instructions on the mobile app.

Open [Setting] -> W-LAN by following the instructions on the mobile app

Select the SSID of the air conditioner you are connecting to.

Select the SSID of the air conditioner you are connecting to

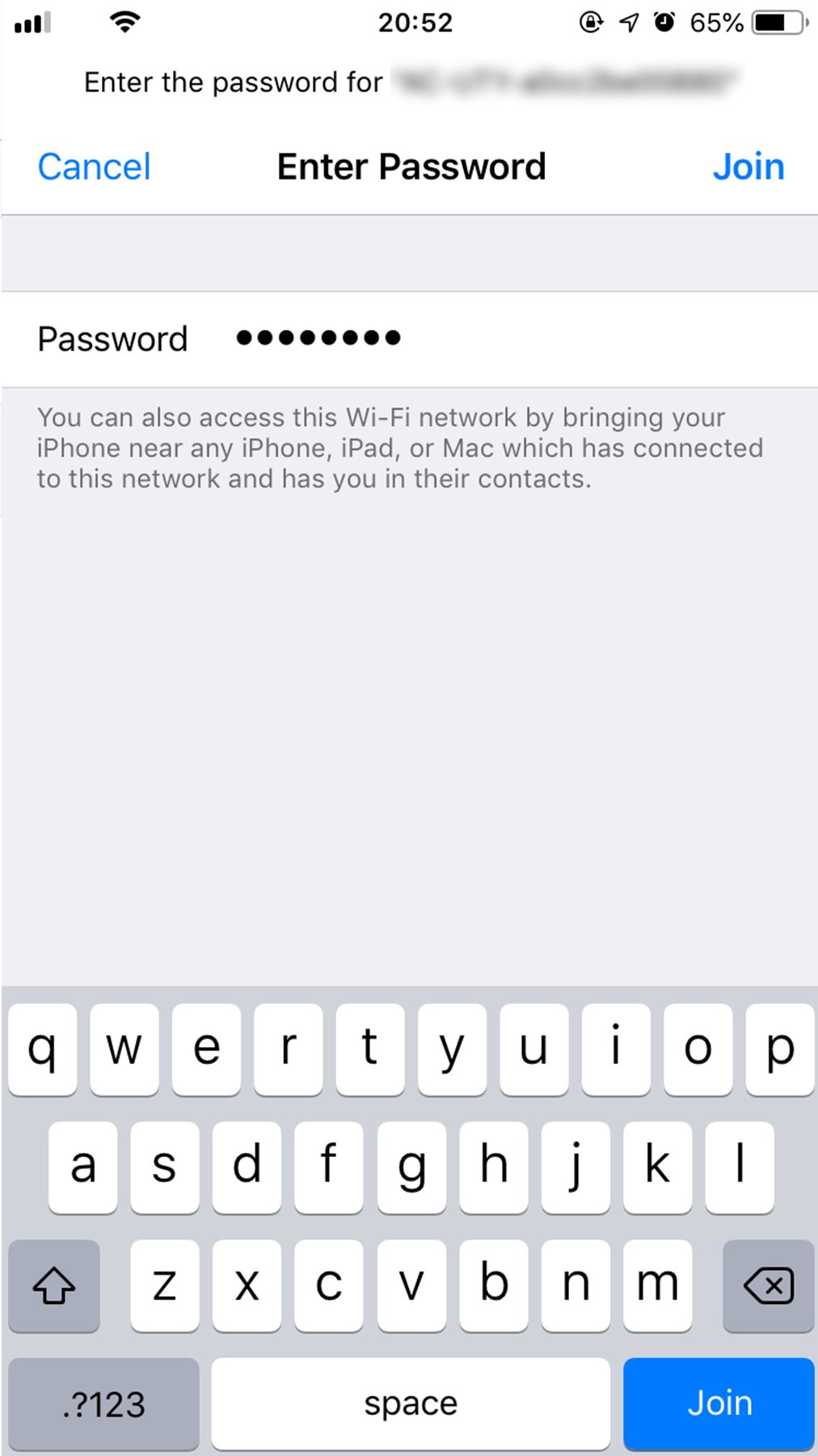

Enter the PIN code written on the W-LAN adapter then press [Join]. Depending on the type of W-LAN adapter, you may not need to enter a password.

Enter the PIN code written on the W-LAN adapter then press [Join]. Depending on the type of W-LAN adapter, you may not need to enter a password

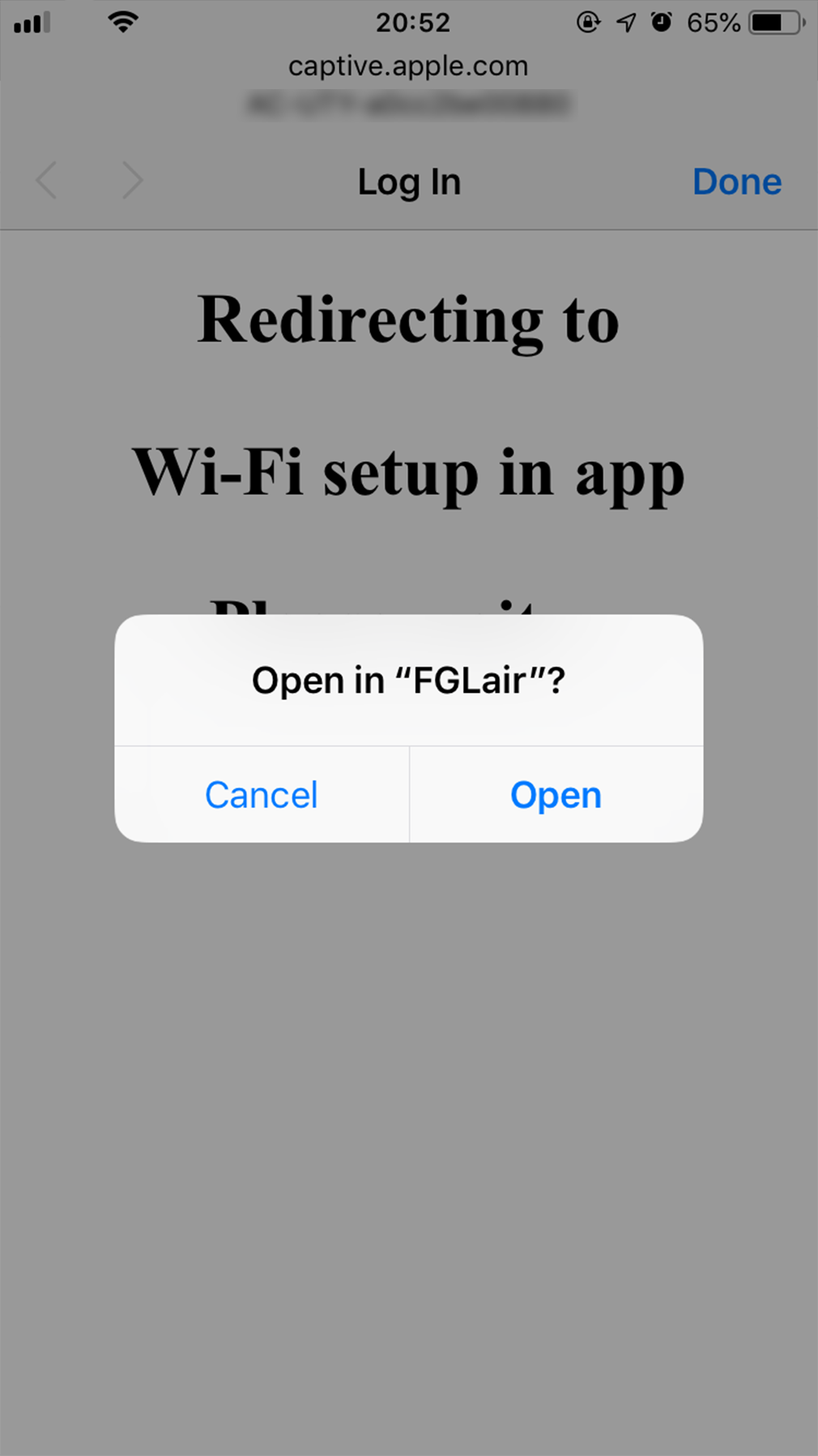

"Open in FGLair?" pop-up will be displayed, tap [Open]. When pop-up is not displayed, return to app screen manually.

"Open in FGLair?" pop-up will be displayed, tap [Open]. When pop-up is not displayed, return to app screen manually

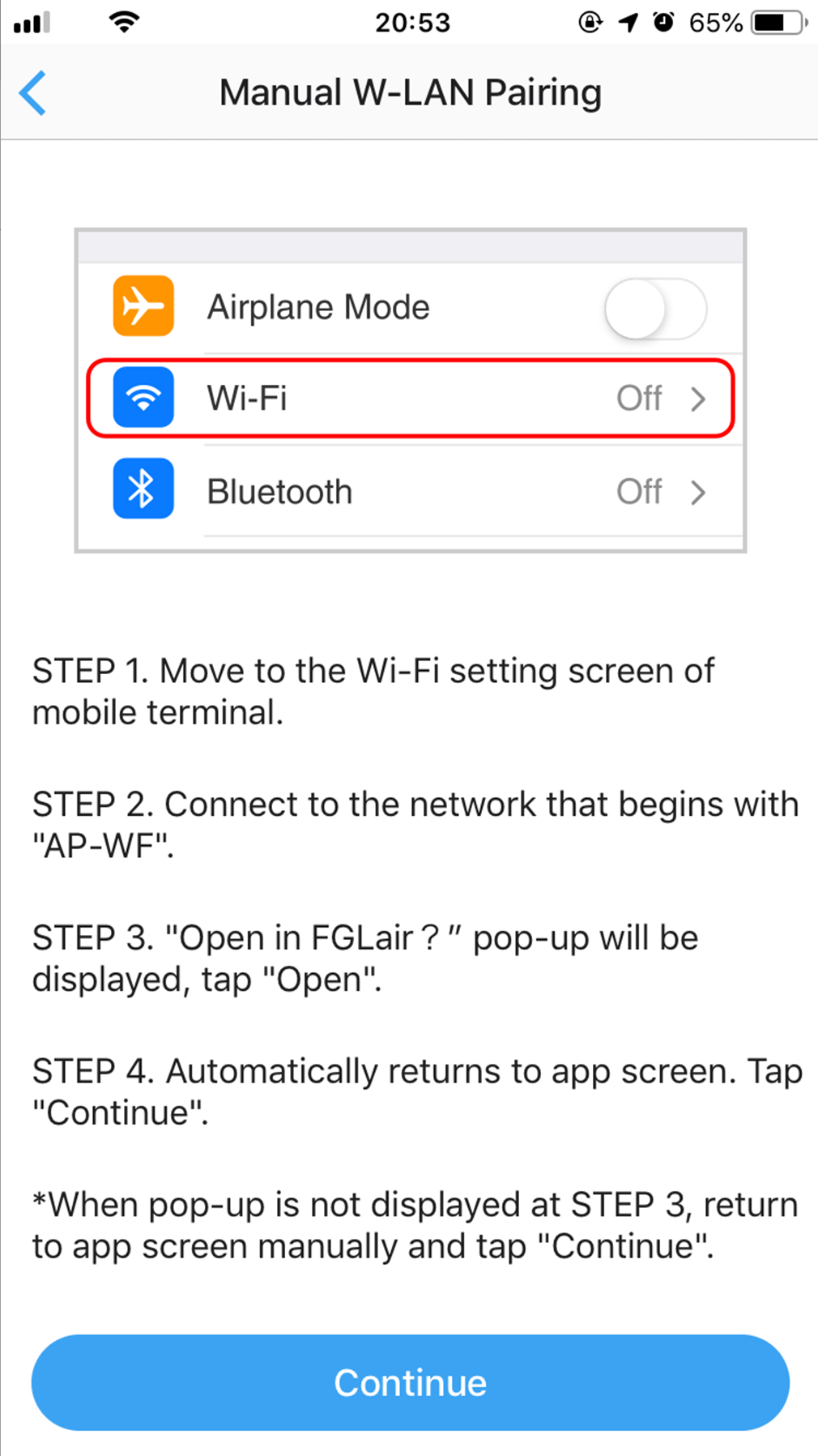

Tap [Continue].

Tap [Continue]
Android flow

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen.

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen

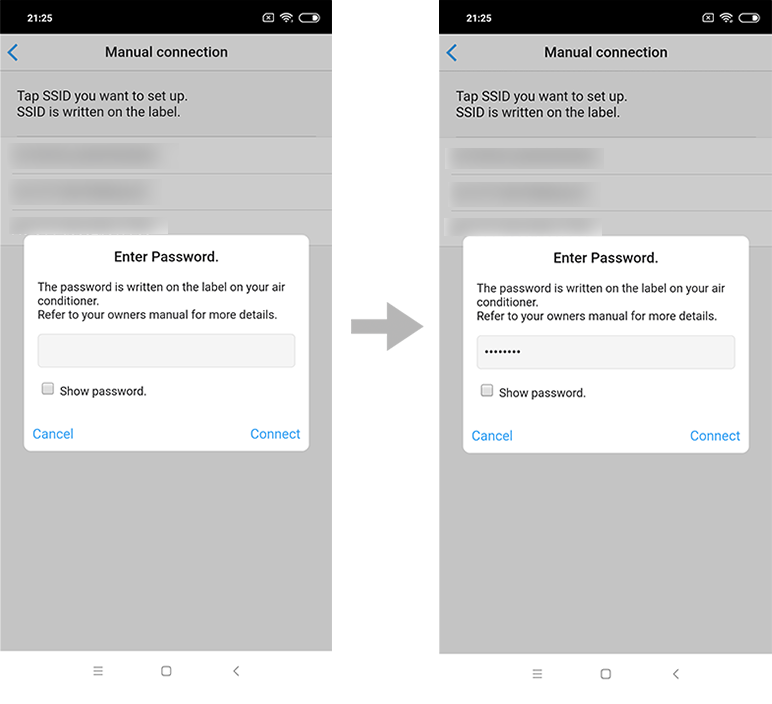

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code.

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code

7

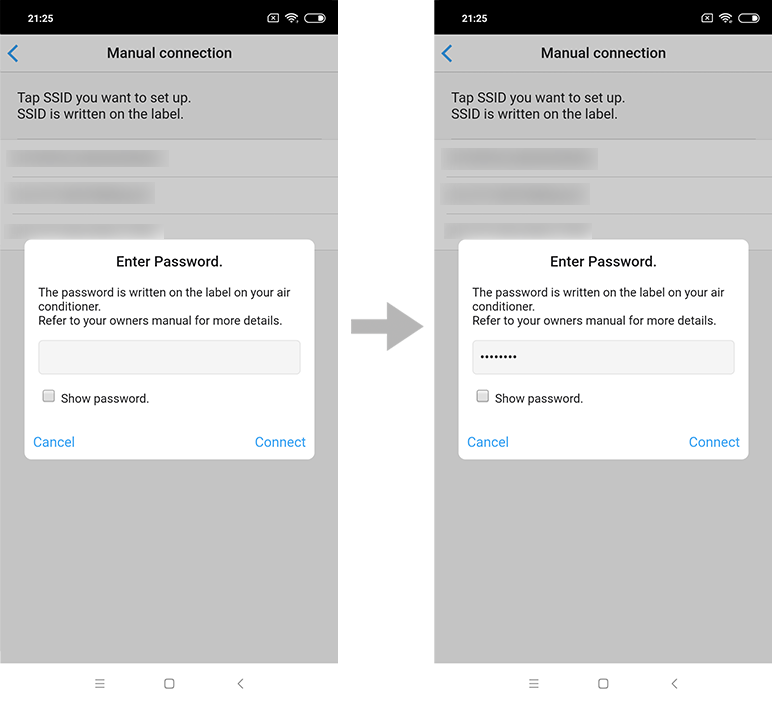

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code.

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code

8

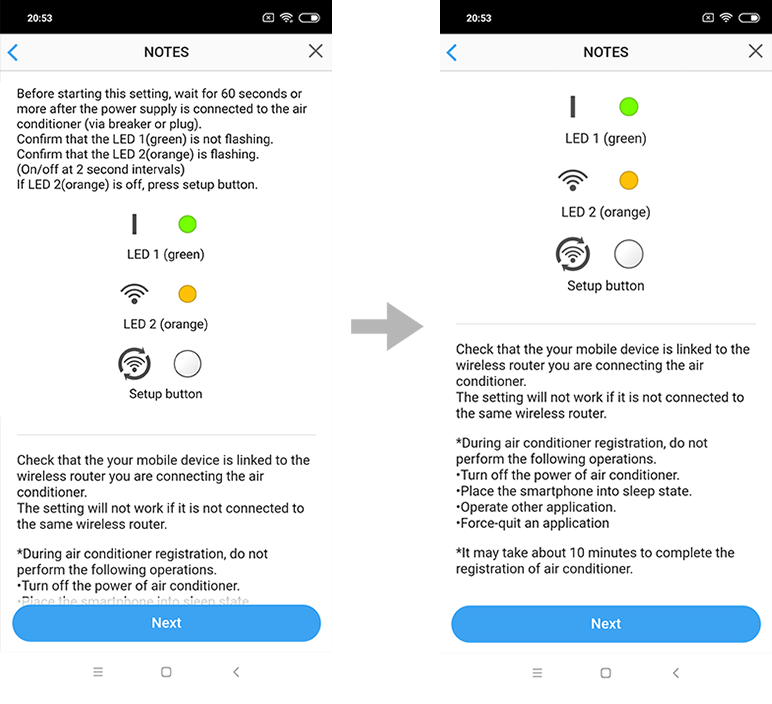

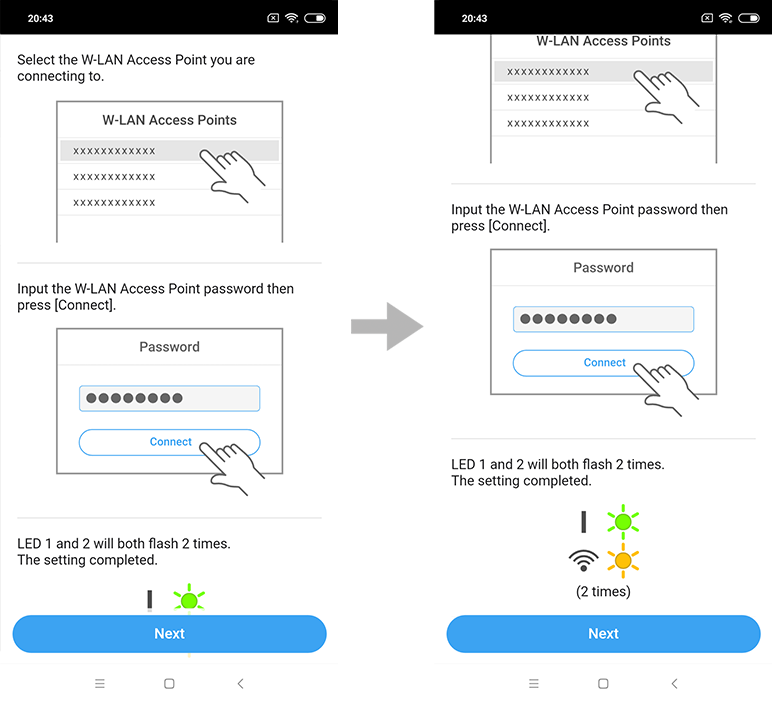

Read the note and tap [Next].

Read the note and tap [Next]

9

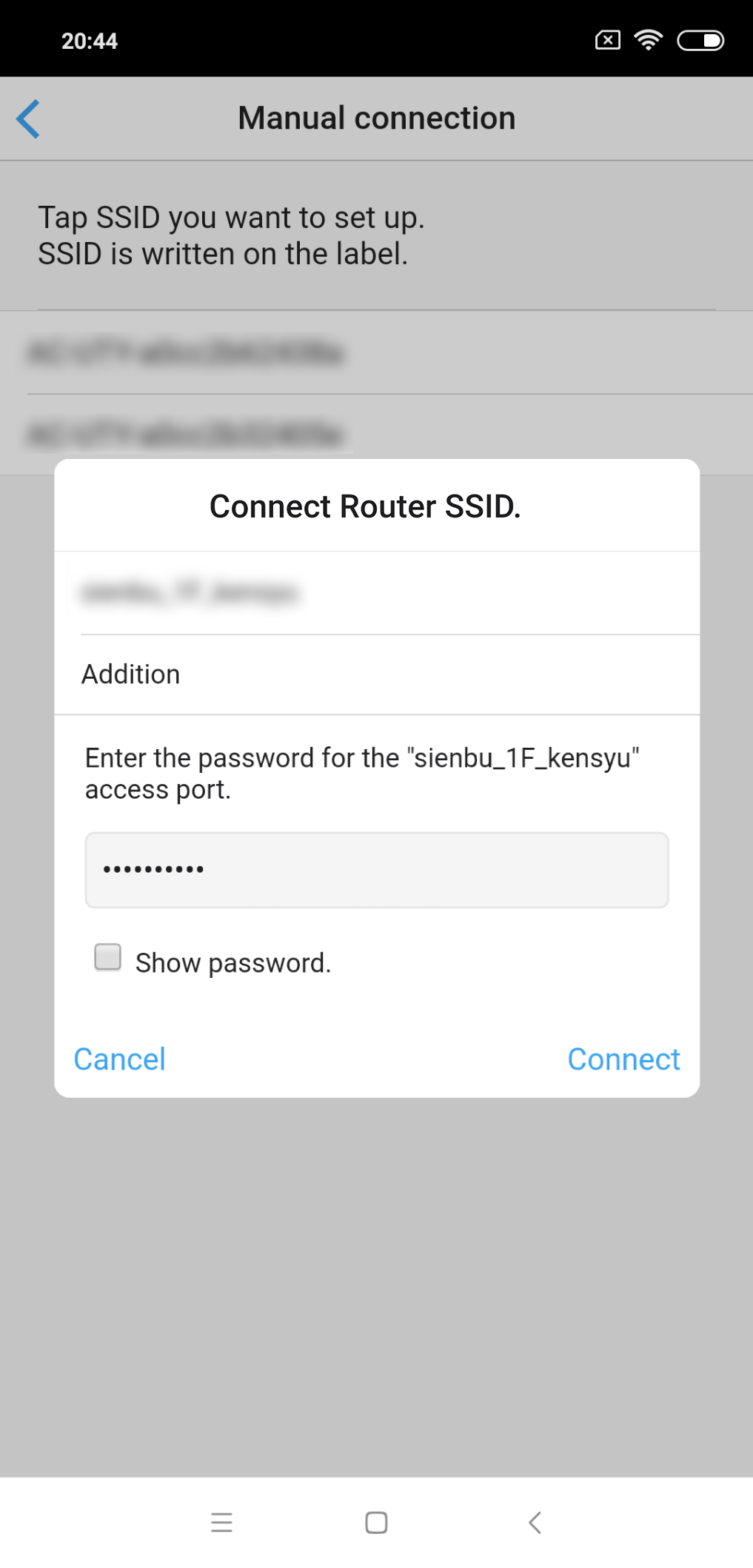

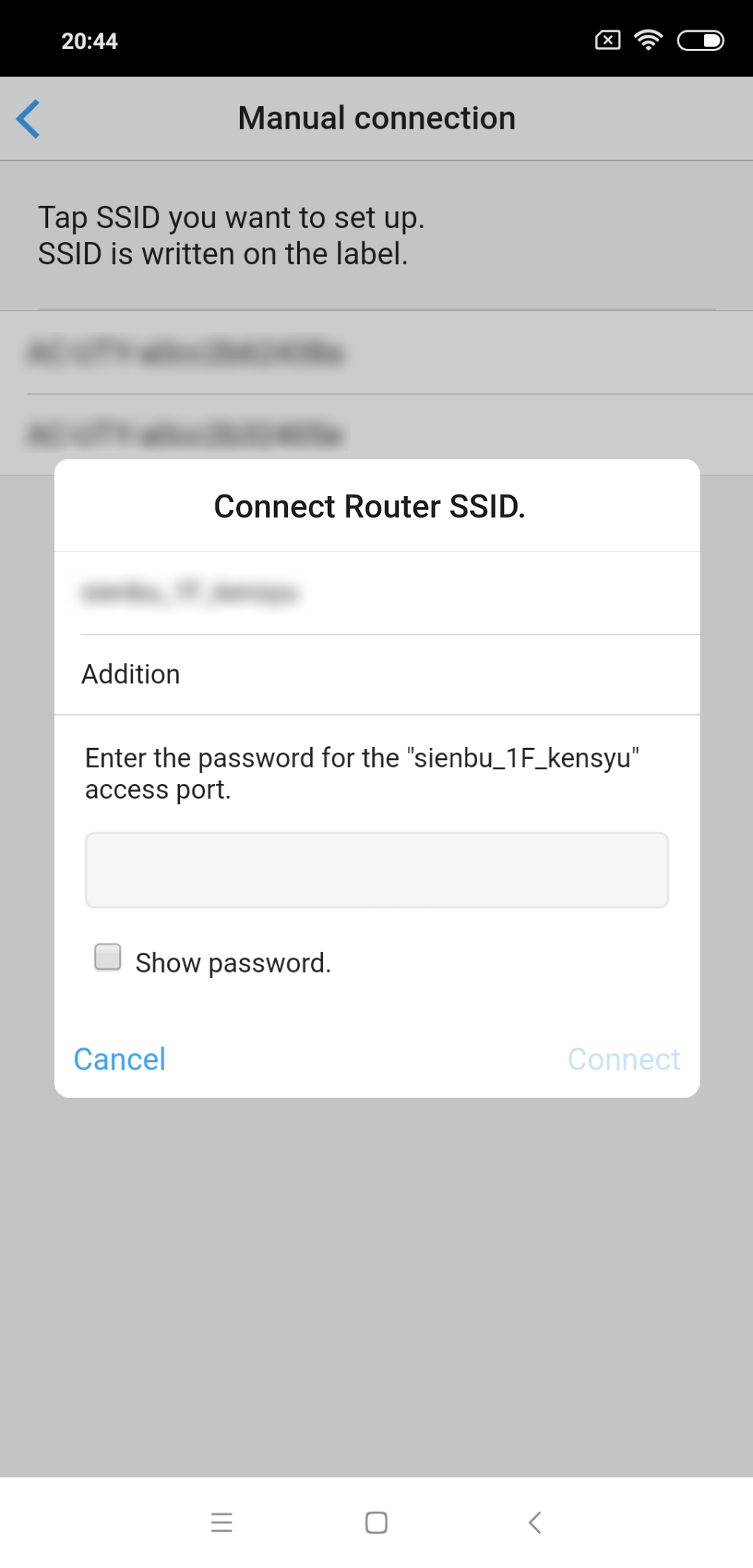

Enter the W-LAN Access Point password then press [Connect].

Enter the W-LAN Access Point password then press [Connect]
Enter the W-LAN Access Point password then press [Connect]

10

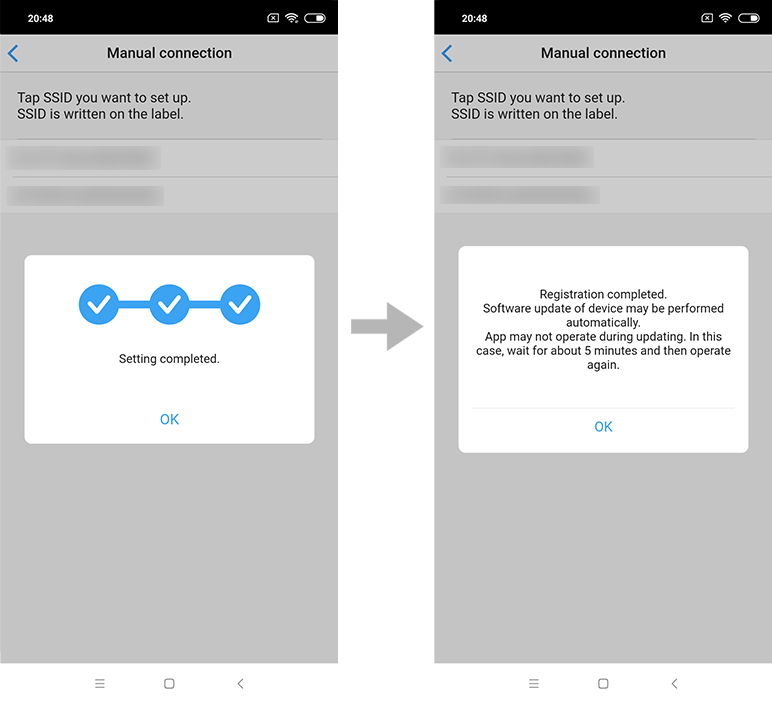

LED 1 and 2 will both flash 2 times. The setting is completed.

LED 1 and 2 will both flash 2 times. The setting is completed
*
The time to complete the setting is different depending on the communication environment.
*
It takes max 15 minutes to complete the setting.
*
“FGLair” is a trademark of GENERAL Inc.
*
The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
*
Screens, figures and movies are only for explanation.
