FGLair™ app SET UP - STEP4: Pairing USB: RC type 1 - Manual connection

1

Tap [＋] to add a new air conditioner.

Tap [＋] to add a new air conditioner

2

Select the adapter type of your air conditioner.

Select the adapter type of your air conditioner

3

Select a [Remote Controller Type 1].

Select a [Remote Controller Type 1]

4

Read the note and tap [Next].

Read the note and tap [Next]

5

Select a [Manual connection].

Select a [Manual connection]

6

* Remote controller shown is a representative model. 【RC type 1】 Press down [SEND] or [OFF(TIMER)] on the remote controller for more than 5 seconds.

* Remote controller shown is a representative model. 【RC type 1】 Press down [SEND] or [OFF(TIMER)] on the remote controller for more than 5 seconds

7

【RC type 1】 [Ln] will be displayed on the remote controller display.

【RC type 1】 [Ln] will be displayed on the remote controller display

8

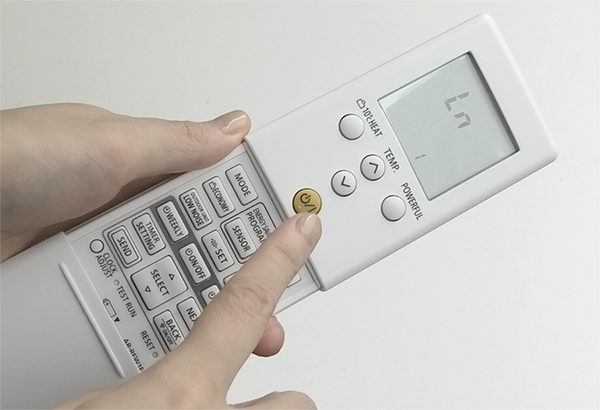

Press .

Press

9

Select [01] using .

Select [01] using

10

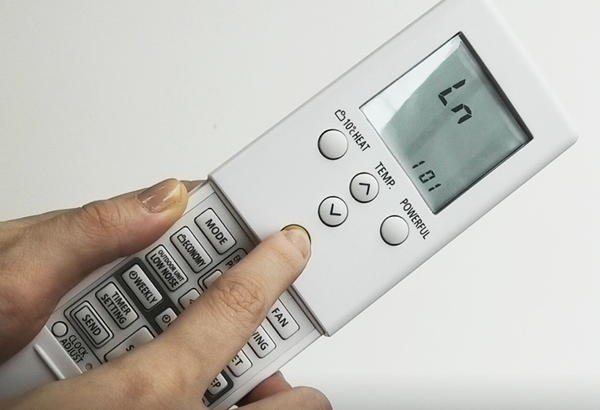

Press . on the indoor unit will blink.

Press . on the indoor unit will blink

11

W-LAN indicator lamp on the indoor unit will blink.

W-LAN indicator lamp on the indoor unit will blink

12

Select [Next] on the mobile app screen.

Select [Next] on the mobile app screen
iOS flow

Open [Setting] -> W-LAN by following the instructions on the mobile app.

Open [Setting] -> W-LAN by following the instructions on the mobile app

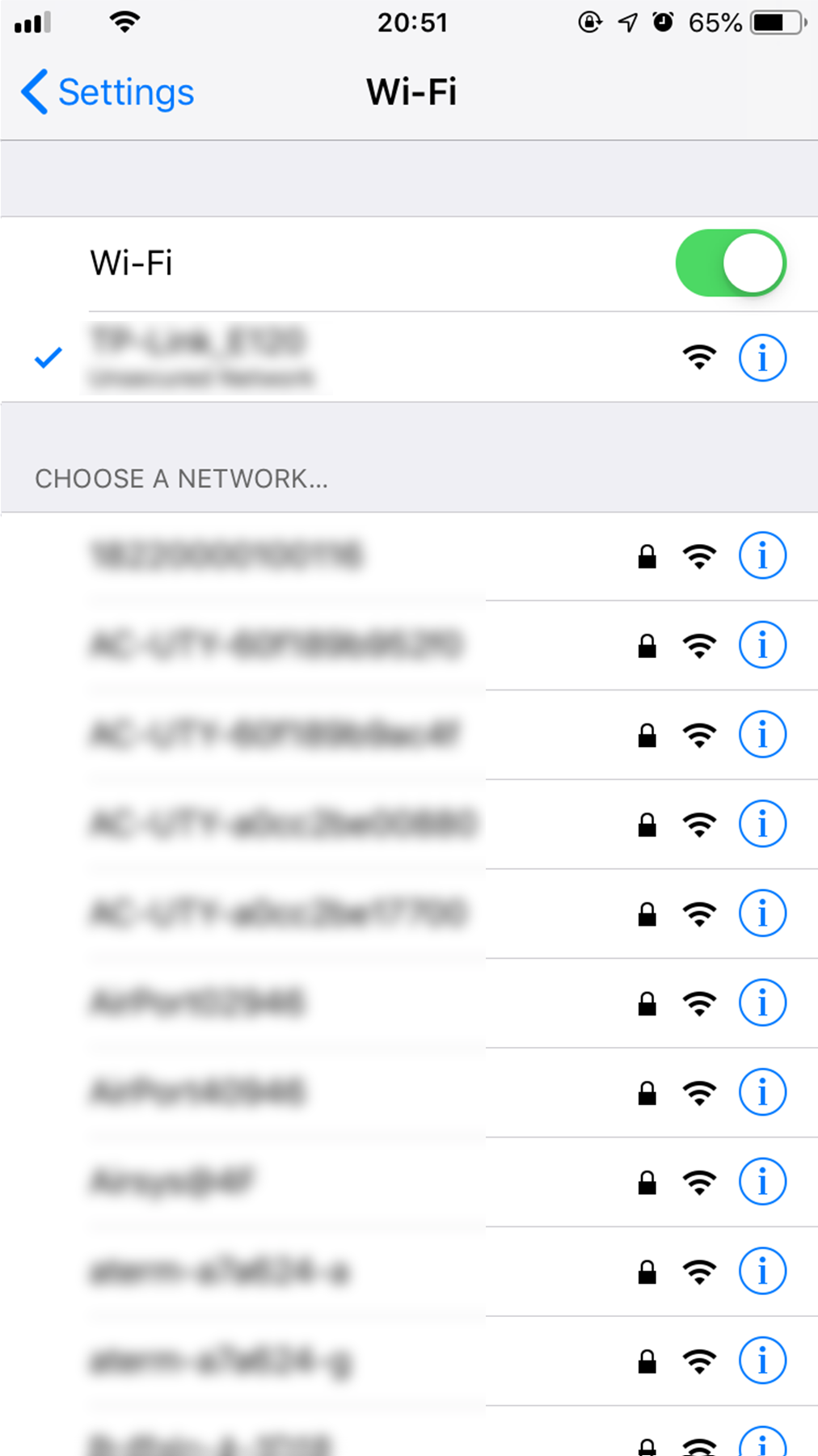

Select the SSID of the air conditioner you are connecting to.

Select the SSID of the air conditioner you are connecting to

Enter the PIN code written on the W-LAN adapter then press [Join]. Depending on the type of W-LAN adapter, you may not need to enter a password.

Enter the PIN code written on the W-LAN adapter then press [Join]. Depending on the type of W-LAN adapter, you may not need to enter a password

"Open in FGLair?" pop-up will be displayed, tap [Open]. When pop-up is not displayed, return to app screen manually.

"Open in FGLair?" pop-up will be displayed, tap [Open]. When pop-up is not displayed, return to app screen manually

Tap [Continue].

Tap [Continue]
Android flow

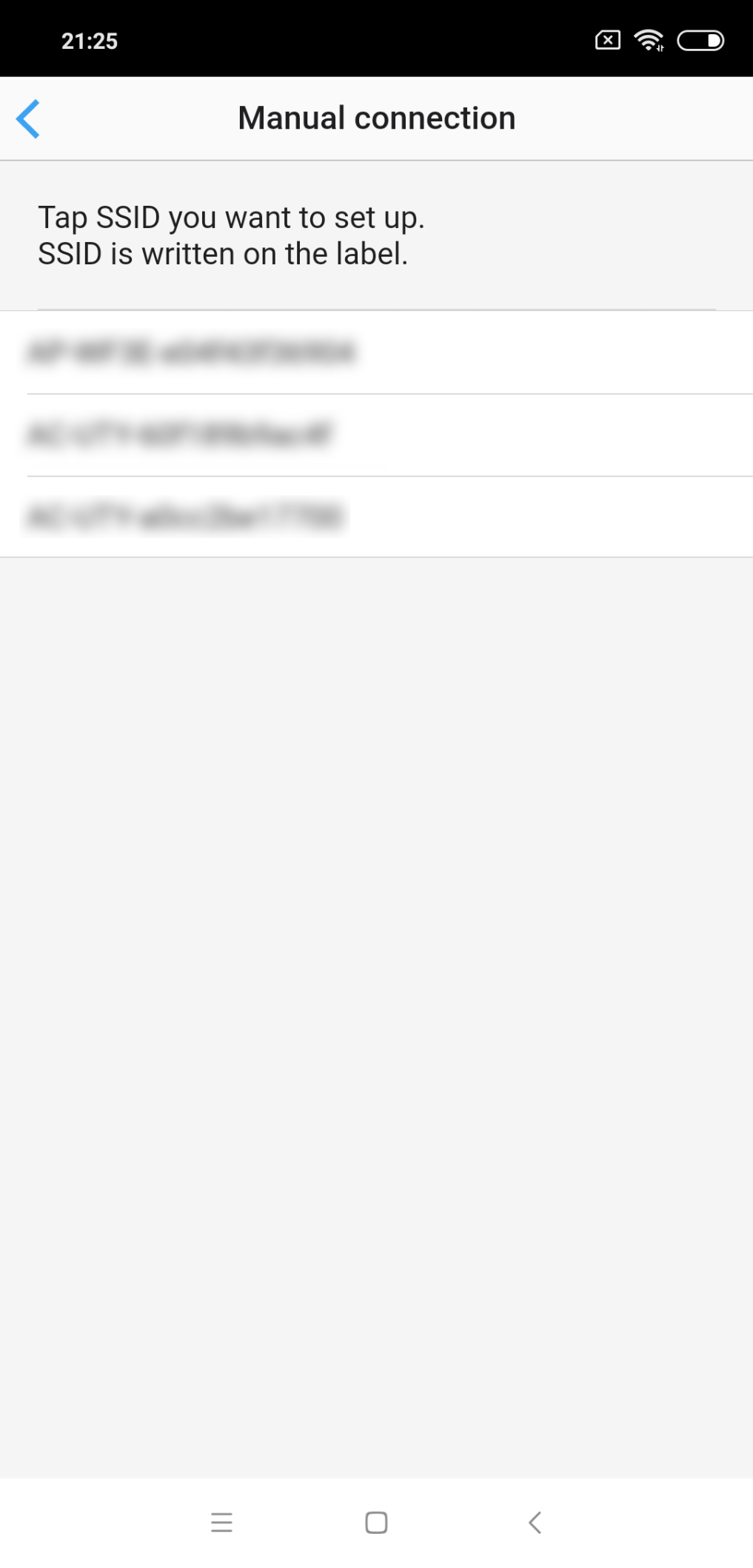

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen.

Select the SSID of the W-LAN adapter you are connecting to. For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code.

Enter the PIN code written on the W-LAN adapter then press [Connect]. Depending on the type of W-LAN adapter, you may not need to enter a PIN code

13

Select [Next] on the mobile app screen.

Select [Next] on the mobile app screen

14

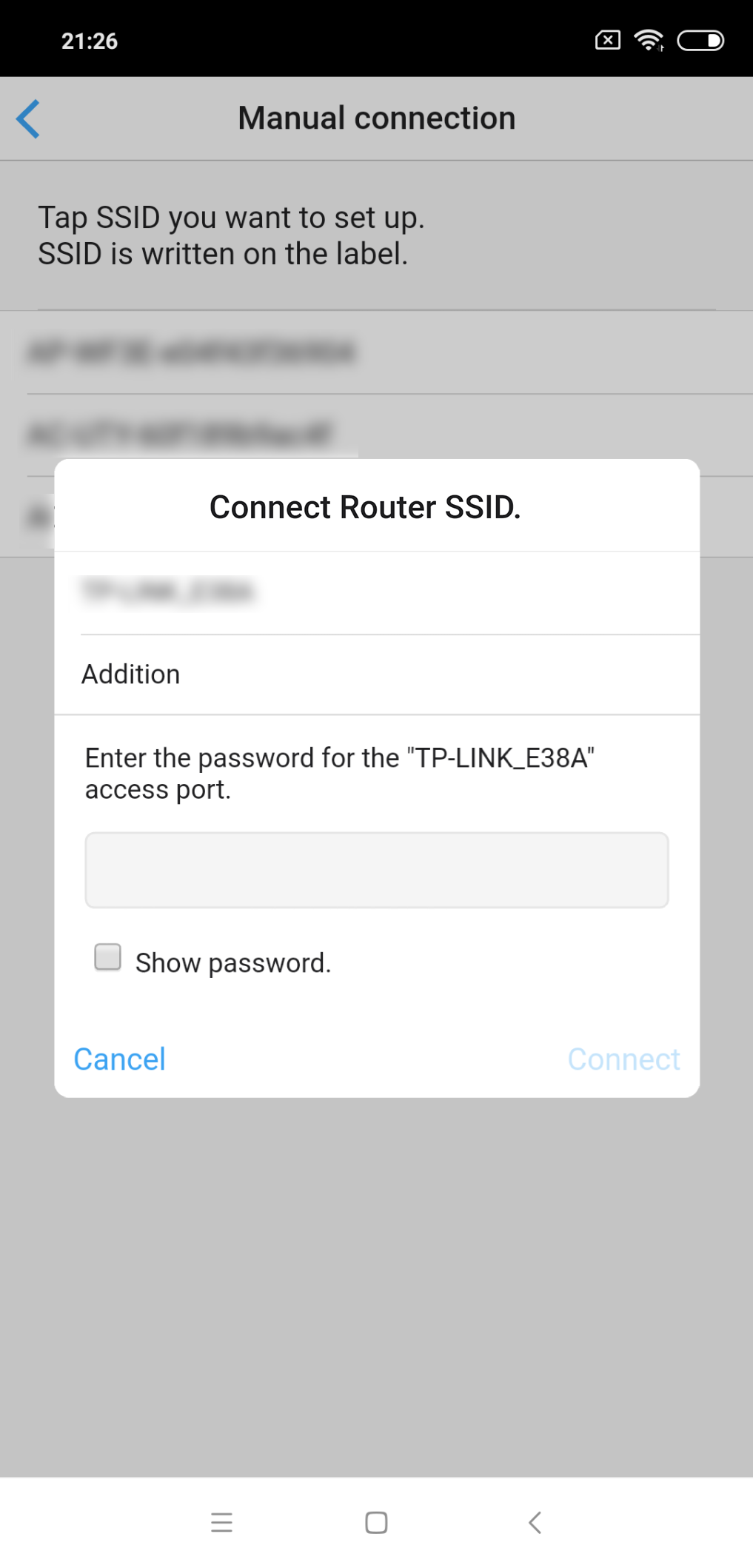

Select the W-LAN Access Point you are connecting to.

Select the W-LAN Access Point you are connecting to

15

Enter the W-LAN Access Point password then press [Connect].

Enter the W-LAN Access Point password then press [Connect]

16

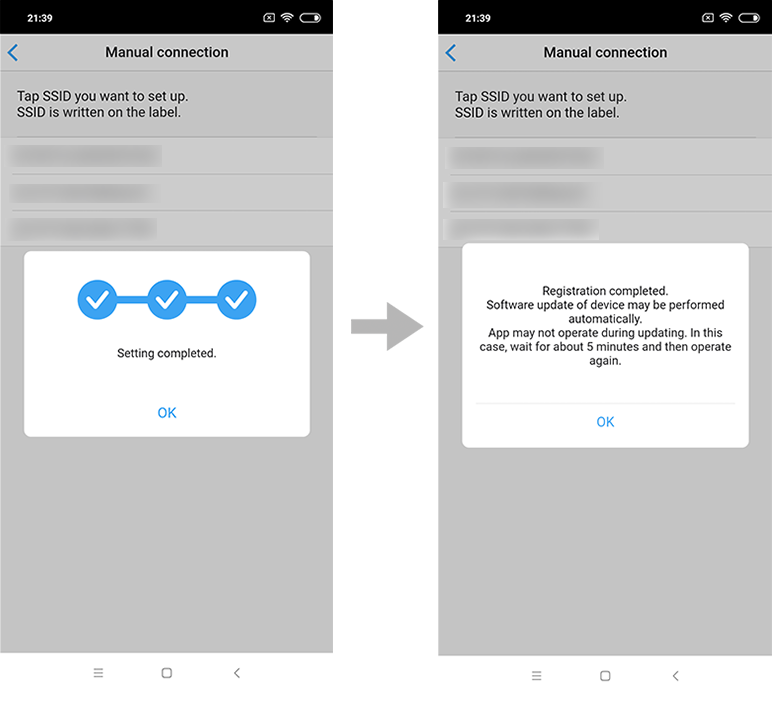

on the indoor unit will turn on.The setting is completed.

on the indoor unit will turn on.The setting is completed
*
The time to complete the setting is different depending on the communication environment.
*
It takes max 15 minutes to complete the setting.
*
“FGLair” is a trademark of GENERAL Inc.
*
The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
*
Screens, figures and movies are only for explanation.
